CUAV CAN PMU Lite

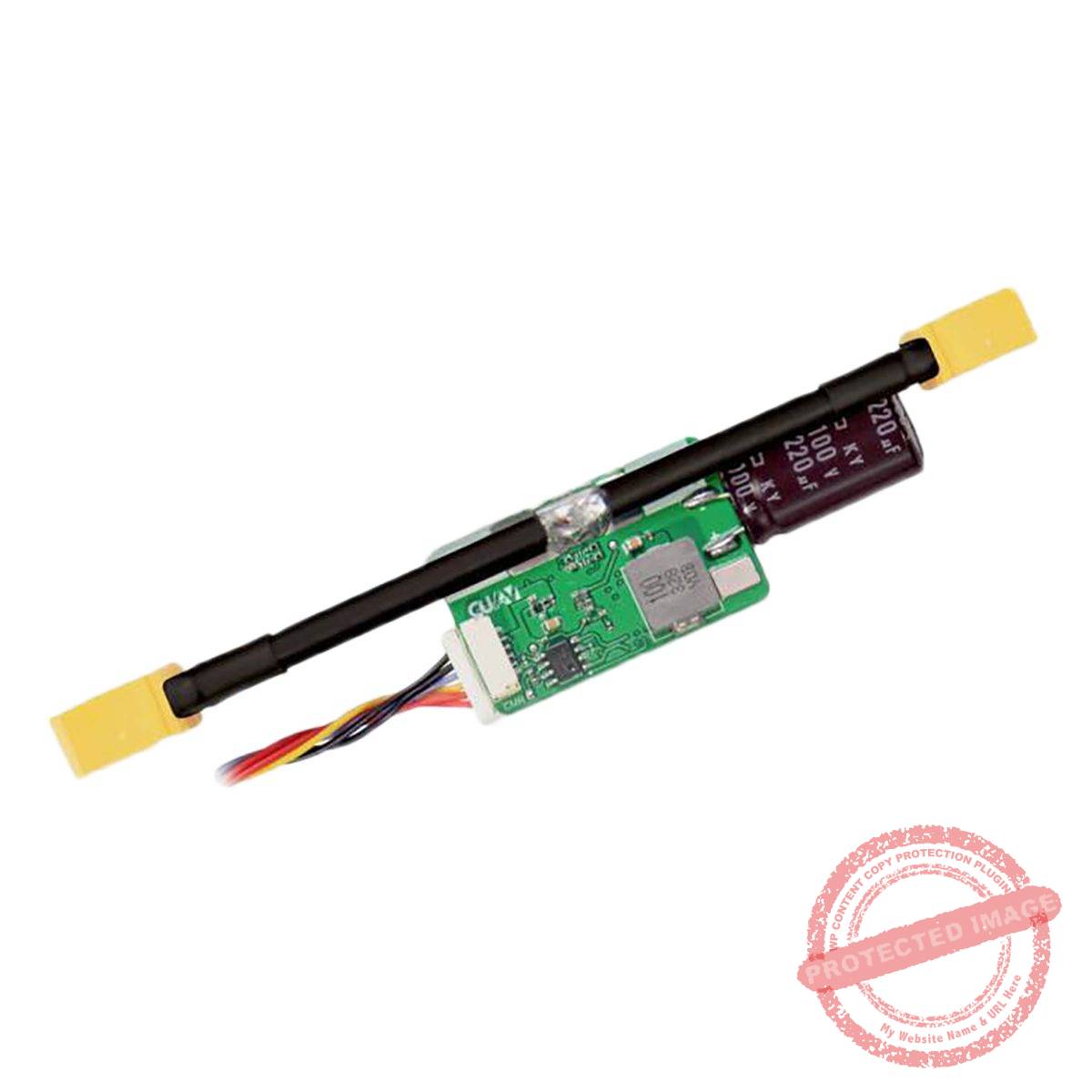

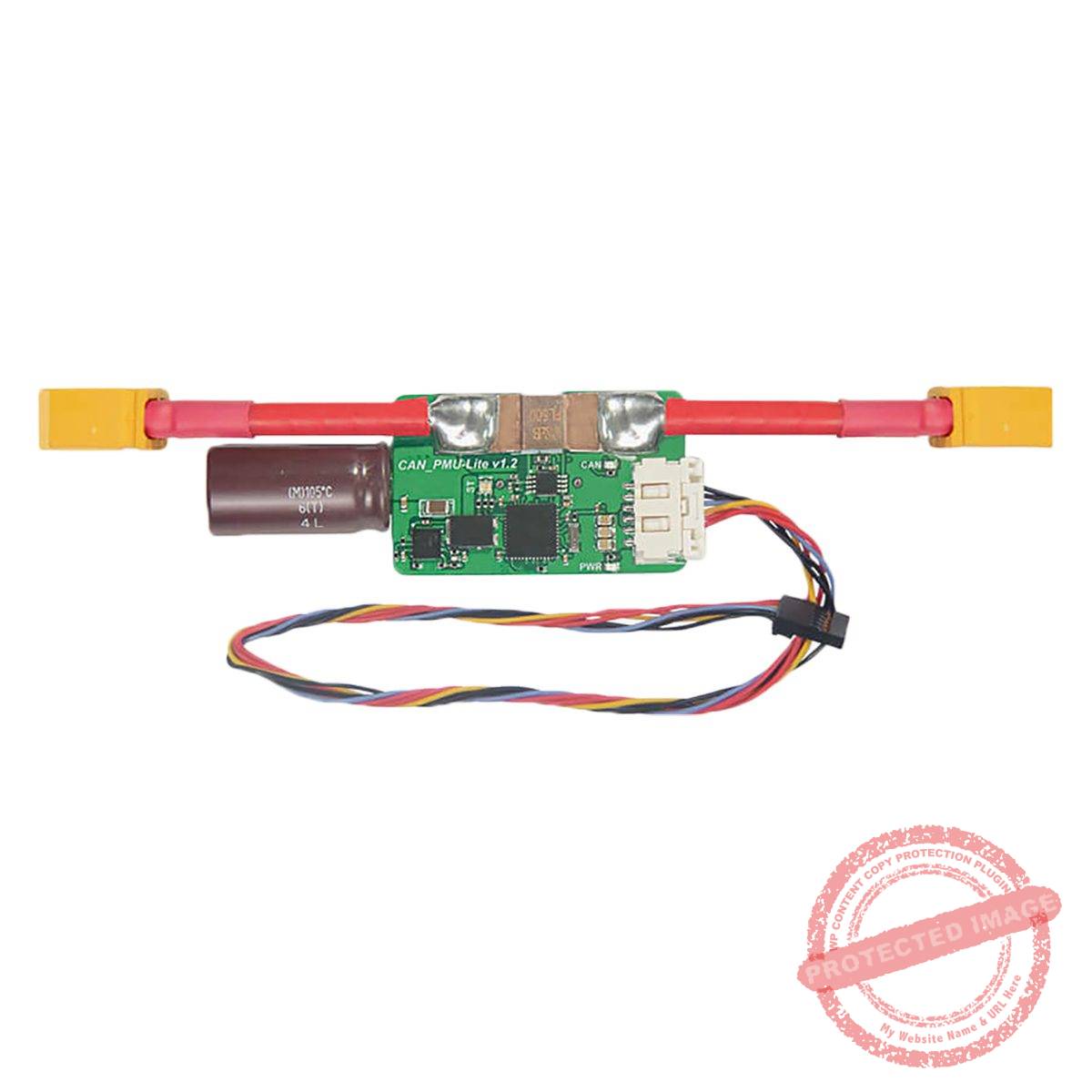

CUAV CAN PMU Lite Power Module | Open Source Drone Hardware CUAV CAN PMU Lite Power Module is a CUAV standard power management module with built-in STM32F412 processor, supporting 10~62V voltage input and 5.2V/4A regulated output. Compared with HV_PM, it uses advanced CAN bus communication and supports standard UAVCAN protocol. It has built-in ITT temperature compensation algorithm and is factory calibrated to ensure that more accurate voltage and current data can be obtained at different temperatures. Follow us World Drone Market on our YouTube to view more about the CAN PMU Lite. Product Brief CUAV CAN power module is a CUAV standard version of the power management module, built-in STM32F412 processor, supports 10~62V voltage input and 5.4V/4A regulated output. Compared with HV_PM, it uses advanced CAN bus communication and supports standard UAVCAN protocol. PMU lite has built-in ITT temperature compensation algorithm and performs factory calibration to ensure the consistency of measurement results at different temperatures. CAN PMU Power Module main function 1. Support 10~62V voltage input 2. Maximum passing current: maximum 90A 3. Measurement accuracy, current accuracy within 80A 0.2, voltage accuracy 0.15V 4. Regulated output: can provide up to 21W 5.2V/4A power output for peripherals 5. Power indicator LED, visually indicate Lipo voltage status 6. Future upgrades support more functions such as power consumption statistics and instantaneous power consumption push For regular version of CAN PMU, please check CUAV PMU.
