Mauch PL 4-6S BEC

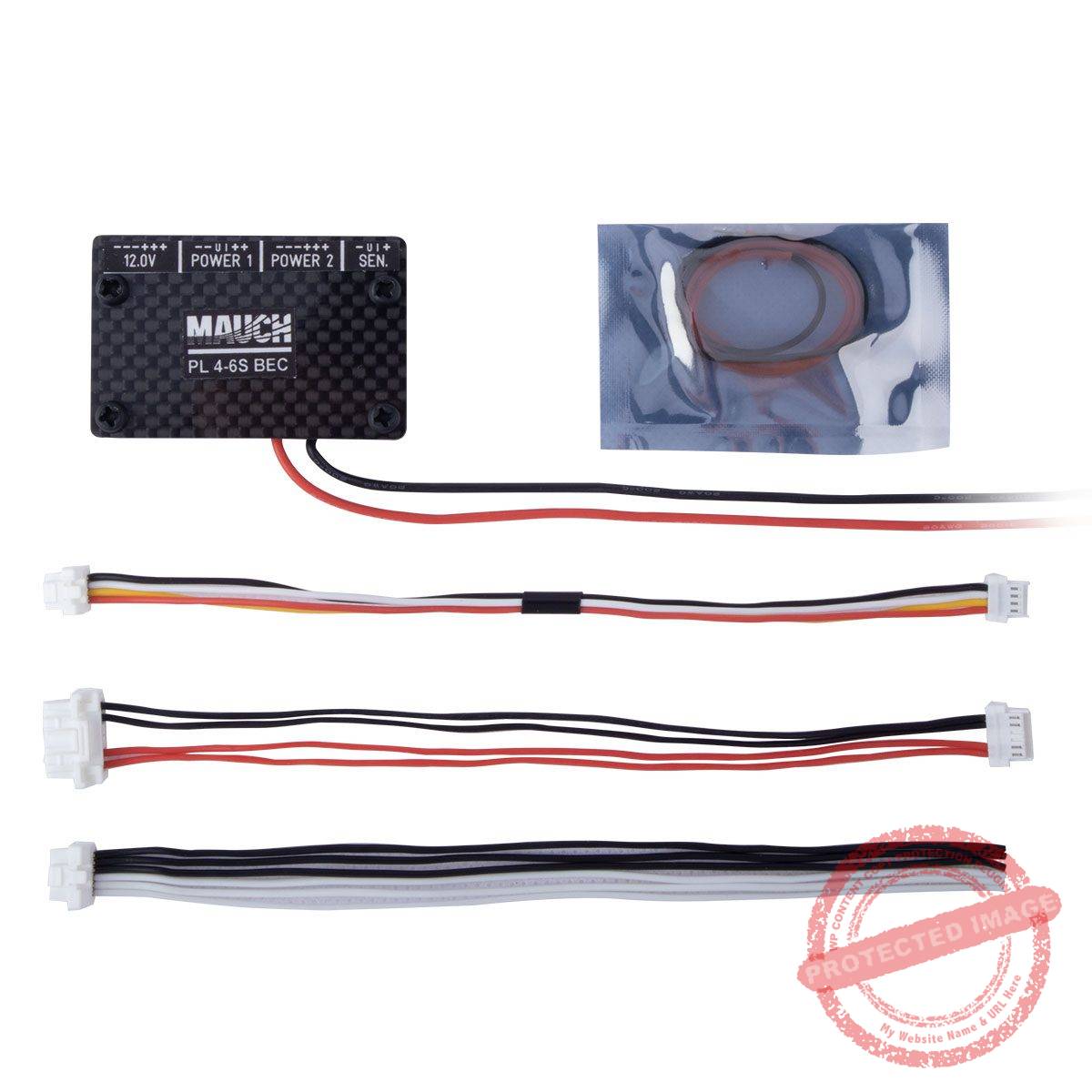

Mauch PL 4-6S BEC / 2x 5.3V-3A 1x 12V-3A / With CFK housing Mauch PL 4-6S BEC Supports input of 4-6S LiPo / max 28V and output of 2x 5.35V / 3A 1x 12.0V / 3A -> /- 0.05V. Ripple of 10mV (0.2%) at 1.5A output current. Includes LDO power supply ( 5.00V /- 0.03V) for sensor board PL-xxx and PL-Sensor Hub X2, with output connector featuring Molex Click-Mate 4p. Input reverse polarity protection, and TDK input and output capacitors to prevent voltage spikes from damaging the UBEC. If you need other drone accessories, please visit our store. Watch more information about the products on our YouTube channel. lue power “ON” LED. (*3) 32mm x 50mm x 7mm / 19g (without CFK casing) 34mm x 52mm x 10mm / 24g (with CFK casing) Scope of supply: 1x Mauch PL-4-6S BEC *3 1x CFK casing 1x Mauch sensor cable (040) Molex Clik-Mate 4p / L = 150mm 1x spare cable (050), suitable for Pixhawk 2.1 / Molex Clik-Mate 2.0-6p / L = 150mm 1x 12.0V output cable, one end with Molex Clik-Mate 1.25mm-4p, the other end open. / L = 150mm REM: The BEC does not come with a flight controller cable, so please choose the correct cable to match your FC: 041: DF13-6p → Pixhawk 1/APM… etc. 042: Molex Clik-Mate 2.0 – 6p → Pixhawk 2.1 043: JST-GH-6p → Pixhawk 3… etc.
